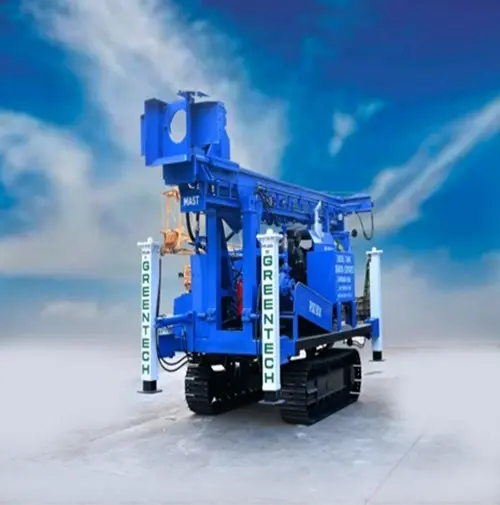

Crawler Mounted 300 – Water Well & Core Drilling Rig
The Crawler Mounted 300 is a robust and versatile drilling rig designed for water well and core drilling up to 300 meters. Its crawler-mounted undercarriage provides stability and mobility across rough terrain, while the hydraulic mast and rotary head ensure efficient drilling in soft and hard rock formations.
Technical Specifications
| Category | Specification |
|---|---|
| Hole Diameter | 6” to 10” |
| Drilling Capacity (NQ) | 300 meters |
| Drilling Capacity (HQ) | 200 meters |
| Depth | 300 meters |
| Under Carriage | Suitable for mounting rig, engine, and centrifugal pump |
| Prime Mover | 180 HP |
| Application | Water Well & Core Drilling |
| Formation Suitability | Soft Rock / Hard Rock |
| Mast | Hydraulic cylinder Max Pull-up Force: 10,000 kgs Max Pull-down Force: 4,500 kgs |
| Rotary Head | Max Speed: 0–1200 RPM Max Torque: 0–400 kg.m |
| Hydraulic System | Max Working Pressure: 280 kg/cm² Pumps: Load Sensing |
| Hydraulic Oil Cooler | 200 liters |
| Levelling Jacks | Four Hydraulic Levelling Jacks |
| Rod Holder | Hydraulic Operated |
| Mast Raising Cylinder | Bore: 140 mm Stroke: 800 mm Quantity: 1 No |
| Foot Clamp | Hydraulic Operated |
